complexType "tns:AbstractDecisionCache"
Namespace:
http://authzforce.github.io/xmlns/pdp/ext/3
Content:
empty, 2 attributes
Abstract:
(cannot be assigned directly to elements used in instance XML documents)
Defined:
globally in pdp-ext-base.xsd; see XML source
Includes:
definition of 1 attribute
Used:
at 1 location

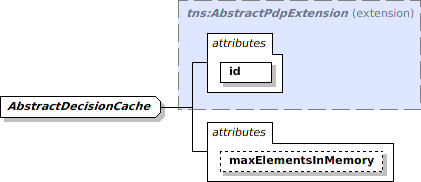

Component Diagram
XML Representation Summary
<...

id
 =
xs:ID
maxElementsInMemory
 =
xs:nonNegativeInteger : "100"
/>
All Direct / Indirect Based Elements (1):
tns:decisionCache
Known Usage Locations
Annotation
PDP decision cache base type. All decision caches should extend this type. For infinite/eternal lifetype of cached elements, set: timeToLiveSec = timeToIdleSec = 0.
Type Definition Detail
Type Derivation Tree
tns:AbstractPdpExtension (extension)
  tns:AbstractDecisionCache
XML Source (w/o annotations (2); see within schema source)
<xs:complexType abstract="true" name="AbstractDecisionCache">
<xs:complexContent>
<xs:extension base="tns:AbstractPdpExtension">
<xs:attribute default="100" name="maxElementsInMemory" type="xs:nonNegativeInteger" use="optional"/>
</xs:extension>
</xs:complexContent>
</xs:complexType>
Attribute Detail (all declarations; defined within this component only; 1/2)
maxElementsInMemory
Type:
xs:nonNegativeInteger, predefined
Use:
optional
the maximum number of elements in memory, before they are evicted. Value zero means unlimited.
Attribute Value
Default:
"100"
XML Source (w/o annotations (1); see within schema source)
<xs:attribute default="100" name="maxElementsInMemory" type="xs:nonNegativeInteger" use="optional"/>
