element <tns:ioProcChain> (local)

Namespace:	http://authzforce.github.io/core/xmlns/pdp/7
Type:	tns:InOutProcChain
Content:	complex, 2 elements
Defined:	locally within tns:pdp element in pdp.xsd; see XML source

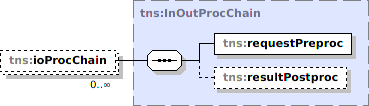

Component Diagram

XML Representation Summary

<tns:ioProcChain>

Content:

tns:requestPreproc, tns:resultPostproc?

</tns:ioProcChain>

Content model elements (2):

tns:requestPreproc, tns:resultPostproc

Included in content model of elements (1):

tns:pdp

Annotation

I/O processing chains if specific processing before and/or after policy evaluation by the PDP engine is required. Each chain must handle a different input datatype. In other words, there is no more than one I/O processing chain per supported input type, e.g. one for XACML/XML input, another for XACML/JSON input.

XML Source (w/o annotations (1); see within schema source)

<xs:element maxOccurs="unbounded" minOccurs="0" name="ioProcChain" type="tns:InOutProcChain"/>
